Overview

The 3.3KW on-board ACDC charging module is a high-performance and universal intelligent modular charging system designed specifically for lithium-ion pure electric A0, A00-level passenger, logistics, special-purpose, modified vehicles, and other pure electric vehicles.

The system utilizes a modular, standardized, and universal design concept and adopts fully digital control technology, resulting in flexible and intelligent control, excellent protection characteristics, and strong system robustness.

The charging module incorporates a new generation of phase-shifted adder-wide zero-pressure zero-current soft-switching technology, combined with high-performance SiC, to achieve strong stability and high conversion efficiency. With a peak efficiency of over 95%, the system can be packaged as an air-cooled or liquid-cool single unit.

It can be packaged as an air-cooled or water-cooled single unit, integrated with DCDC modules as a vehicle-mounted two-in-one product, or integrated with DCDC, PDU, and other modules as a multi-in-one product.

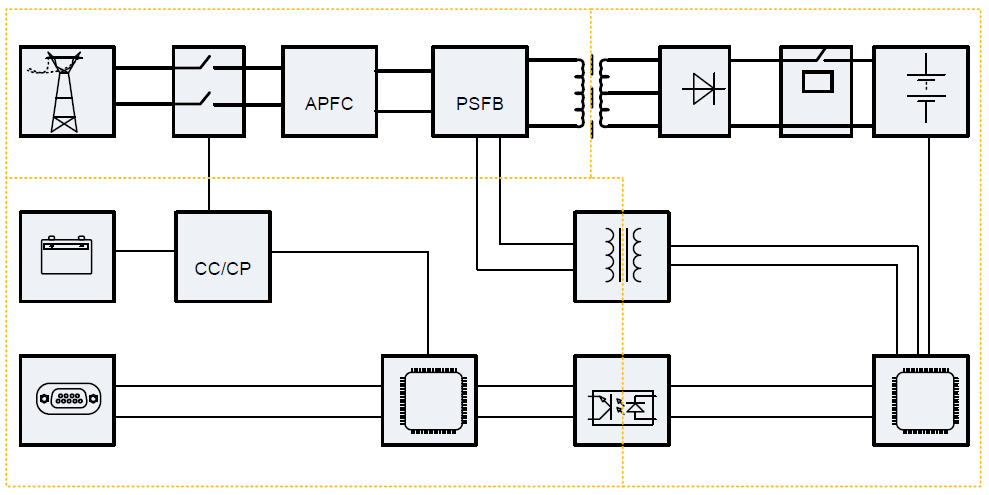

Schematic Diagram

Product Selection Table

Input and Output Characteristic Curve

Thermal Distribution Map and Enclosure Design Guideline

System integrators can use theoretical calculation or thermal simulation for thermal design; Prototype samples need to use point thermometers to measure and obtain temperature rise parameters at various temperature points; When rated input and output are applied, the temperature rise of each point on the surface of the heatsink should be ≤40℃ after 1 hour; The contact surface between the heatsink and the module should be flat, smooth, and free of foreign objects and oil stains; When naturally placed, there should be no gap between the contact surface of the heatsink and the module; The contact surface between the heatsink and the module should be coated with thermal silicone grease, and the thickness should be just enough to not see the base color; The thickness of the heatsink at the contact surface with the module should be greater than or equal to 5mm; For matters not covered, please refer to the specification or contact technical support.

Mechanical Dimension Drawing
